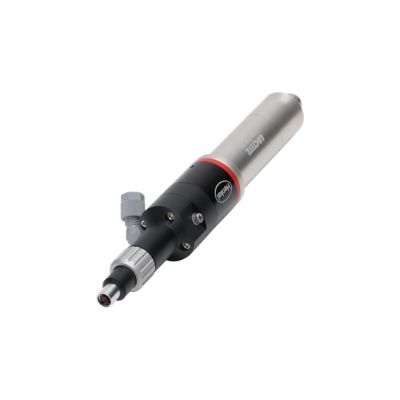

LOCTITE® Compact Rotor Pump Dispenser 4.0

Features and Benefits

The LOCTITE Compact Rotor Pump Dispenser 4.0 is a rotating displacement, volumetric dispensing system used to apply adhesives out of a reservoir, with high repeatability.
The LOCTITE® Compact Rotor Pump Dispenser 4.0 applies adhesives like anaerobics, acrylates and UV acrylates. It has a viscosity limit of 100,000 mPas. The dispenser is a rotating displacement, volumetric dispensing system and consists of a rotor and a stator. This rotor pump requires the LOCTITE RC15 Rotor Pump Controller, item #1880232 (sold separately), to form a complete dispensing system. NOTE: Not for dispensing cyanoacrylates.
  • Specifically designed for volumetric dispensing of dots and beads of LOCTITE light cure and anaerobic adhesives
  • Capable of dispensing low to high viscosity adhesives
  • Reversible direction of flow (suck-back) prevents dripping and can provide a clean cut of dispensed adhesive
  • Easy integration with LOCTITE® reservoirs and controllers
  • Included in the Box: (1) Compact Rotor Pump Dispenser 4.0 with a stators and a drive unit; (1) mounting tool; (1) feed line, OD 6 mm, length 2 m; (1) operating manual
  • Volumetric device allows controlled flow rate
  • Multiple pump sizes available, dependent on flow rate requirements
  • Integrated Luer-Lok Adapter with O-ring (patented) ensures sealing in reverse flow
  • Components required for operation: (1) dispenser, (1) LOCTITE RC15 Rotor Pump Controller, item #1880232 (sold separately)
Read More

Technical Information

Applications Dispensing adhesives
Dispense patterns Beads, Drops, Potting
Key characteristics Vacuum suck-back
Operating type Volumetric
Used to dispense Acrylics, Anaerobics, Light cure acrylics
Viscosity 0.0 - 100000.0 mPa·s
