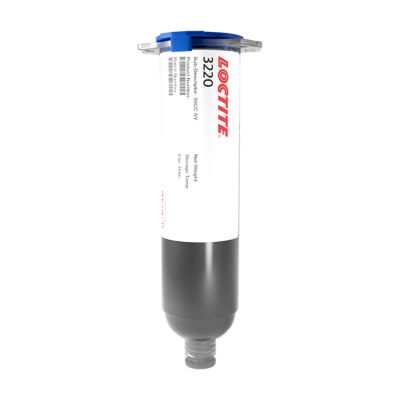

LOCTITE® 3220
Características y Ventajas
This 1-part electrically non-conductive adhesive has been specially formulated for use in heat sensitive devices. It has a fast cure at a low cure temperature.
LOCTITE® 3220 is a 1-part, electrically non-conductive adhesive and sealant, which cures in 5-10 minutes at 80°C (176°F). It has excellent adhesion, and is ideal for applications including image sensors and markerless motion capture (MMC).
Leer más
Documentos y Descargas
¿Está buscando un TDS o SDS en otro idioma?
Información técnica
| Casson viscosidad, cono & placa Haake PK100, M10/PK1, 2°, @ 25.0 °C | 2500.0 mPa.s (cP) |
| Número de Componentes | Monocomponente |
| Programa de curado, @ 80.0 °C | 5.0 - 10.0 min |
| Resistencia al corte | 2960.0 psi |
| Temperatura de almacenaje | -15.0 °C |
| Tipo de curado | Curado Térmico |
| Viscosidad, Brookfield CP51, @ 25.0 °C Speed 20 rpm | 7150.0 mPa.s (cP) |
| Índice tixotrópico | 3.3 |
LOCTITE® 3220
This 1-part electrically non-conductive adhesive has been specially formulated for use in heat sensitive devices. It has a fast cure at a low cure temperature.
