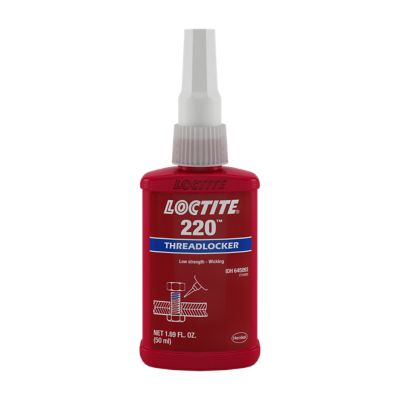

LOCTITE® 220
Features and Benefits
Available sizes:
Low-viscosity, removable-strength threadlocker for the locking and sealing of small diameter, pre-assembled threaded fasteners under 6 mm (0.234"). Prevents loosening from shock and vibration, but is also easy to disassemble with standard hand tools without heat.
When you have pre-assembled fasteners less than 6.35 mm (1/4") in diameter and need an effective threadlocker that allows for easy disassembly without shearing the screw, choose LOCTITE® 220. This fluorescent, low viscosity threadlocker wicks its away into the thread roots of pre-assembled, small diameter fasteners. Perfect for applications such as adjustment of set screws and small diameter or long engagement length fasteners.
- For use on pre-assembled fasteners up to 6.35 mm (1/4") diameter
- Prevents loosening and leakage from shock and vibration
- Can be easily disassembled without shearing the screw
- Fluorescent under UV for quality control
Documents and Downloads
Safety Data Sheets and RoHs
- Bottle 10.0/case - IDH 231424
- Bottle 10.0/case - IDH 483618
- Bottle 10.0/case - IDH 645093
LOCTITE® 220, 250 ml Bottle 231424 en-CA
IDH:
231424
EAN:
079340220416
Size Case: Bottle
Quantity: 10.0/case
LOCTITE® 220, 10 ml Bottle 483618 en-CA
IDH:
483618
EAN:
079340373884
Size Case: Bottle
Quantity: 10.0/case
LOCTITE® 220, 50 ml Bottle 645093 en-CA
IDH:
645093
EAN:
079340391864
Size Case: Bottle
Quantity: 10.0/case
No documents found
Looking for a TDS or SDS in another language?
Technical Information
| Agency approvals / certificates / specifications | ASTM D5363, MIL-S-46163A for existing designs |
| Applications | Threadlocking |
| Color | Blue |
| Cure type | Anaerobic cure |
| Key characteristics | No mix, Strength: low Strength, Viscosity: low viscosity |
| Number of components | 1 part |
| Physical form | Liquid |
LOCTITE® 220
Low-viscosity, removable-strength threadlocker for the locking and sealing of small diameter, pre-assembled threaded fasteners under 6 mm (0.234"). Prevents loosening from shock and vibration, but is also easy to disassemble with standard hand tools without heat.
