LOCTITE® EA E-90FL
Features and Benefits
Available sizes:
2-part, toughened, medium viscosity, industrial grade solid epoxy adhesive.
LOCTITE® EA E-90FL is a gray, opaque, 2-part, toughened, medium viscosity, industrial grade solid epoxy adhesive. After curing at room temperature, it forms a flexible, gray bondline with excellent resistance to shock and impact, a wide range of chemicals and solvents and acts as an excellent electrical insulator. Suited for low-stress, high-impact bonding applications of dissimilar materials.
- Extended working life allows more time to adjust parts during assembly
- Can also be used for repairing strain gauges, sealing seams on fiberglass components, repairing printed circuit boards, bonding stainless steel inserts, and rubber hose to steel tubing
- Typical applications include bonding plastic, metal, glass, wood, ceramic, rubber, and masonry materials where flexibility is required
- Viscoelastic & Finite Strain FEA data cards available
Documents and Downloads
Safety Data Sheets and RoHs
- Standard Cartridge 10.0/case - IDH 219298
- Standard Cartridge 6.0/case - IDH 237106
LOCTITE® EA E-90FL, 50 ml Standard Cartridge 219298 en-CA
IDH:
219298
EAN:
079340293090
Size Case: Standard Cartridge
Quantity: 10.0/case
Download SDS
LOCTITE EA E-90FL A LOW ODOR EPOXY IDH: 219298 EN/CA (1 of 4)
LOCTITE EA E-90FL A known as DB EPOXY ADH E-90FL 50 ML IDH: 219298 EN/CA (2 of 4)
LOCTITE EA E-90FL B LOW ODOR EPOXY IDH: 219298 EN/CA (3 of 4)
LOCTITE EA E-90FL B known as DB EPOXY ADH E-90FL 50 ML HARD IDH: 219298 EN/CA (4 of 4)
Download RoHs
IDH: 219298 EN/CA (1 of 4)
IDH: 219298 EN/CA (2 of 4)
IDH: 219298 EN/CA (3 of 4)
IDH: 219298 EN/CA (4 of 4)

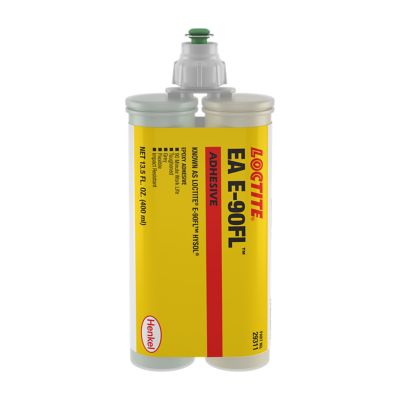

LOCTITE® EA E-90FL, 400 ml Standard Cartridge 237106 en-CA
IDH:
237106
EAN:
079340293113
Size Case: Standard Cartridge
Quantity: 6.0/case
No documents found
Looking for a TDS or SDS in another language?
Technical Information
| Cure type | Room temperature (ambient) cure |
| FEA (finite element analysis) | Viscoelastic |
| Key characteristics | Flexible, Shock resistant, Viscosity: medium viscosity, Work life: extended work life |
| Mix ratio, by volume | 1 : 1 |
| Mix ratio, by weight | 100 : 85 |
| Number of components | 2 part |
| Physical form | Liquid |
| Recommended for use with | Ceramic, Metal, Phenolic, Rubber, Wood |
| Mixed | |
| Color, Mixed | Gray, Opaque |
| Resin | |
| Color, Resin | Off white |
| Hardener | |
| Color, Hardener | Dark grey |
LOCTITE® EA E-90FL
2-part, toughened, medium viscosity, industrial grade solid epoxy adhesive.
