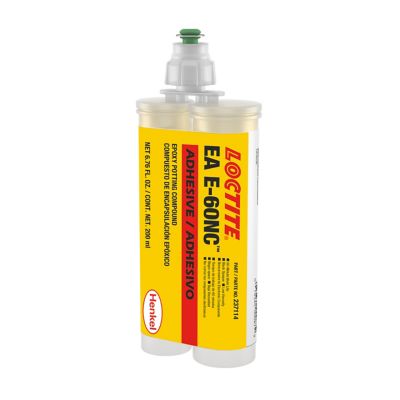

LOCTITE® EA E-60NC
Features and Benefits
Available sizes:
A 2-part, flowable, industrial-grade, epoxy liquid potting compound with extended work life.
LOCTITE® EA E-60NC is a black, opaque, 2-part, flowable, industrial-grade, epoxy liquid potting compound with extended work life. It’s ideal for electronic applications (e.g. attaching components to PC boards, housing assembly, and potting) and works well with electrical components sensitive to corrosion. It cures at room temperature to form a rigid encapsulant and provides excellent environmental and chemical resistance and insulation.
- Extended work life
- Non-corrosive to metallic/electronic components
- Excellent environmental and chemical resistance and insulation
- Cures at room temperature
Documents and Downloads
Safety Data Sheets and RoHs
- Hobbock/Pail 1.0/case - IDH 233988
- Hobbock/Pail 1.0/case - IDH 233990
- Dual cartridge 10.0/case - IDH 237113
- Standard Cartridge 10.0/case - IDH 237114
- Dual cartridge 6.0/case - IDH 237115
LOCTITE® EA E-60NC, Part A, 5 gal Hobbock/Pail 233988 en-CA
IDH:
233988
EAN:
079340293274
Size Case: Hobbock/Pail
Quantity: 1.0/case
LOCTITE® EA E-60NC, Part B, 5 gal Hobbock/Pail 233990 en-CA
IDH:
233990
EAN:
079340293281
Size Case: Hobbock/Pail
Quantity: 1.0/case
LOCTITE® EA E-60NC, 50 ml Dual cartridge 237113 en-CA
IDH:
237113
EAN:
079340293243
Size Case: Dual cartridge
Quantity: 10.0/case
LOCTITE® EA E-60NC, 200 ml Standard Cartridge 237114 en-CA
IDH:
237114
EAN:
079340293250
Size Case: Standard Cartridge
Quantity: 10.0/case
LOCTITE® EA E-60NC, 400 ml Dual cartridge 237115 en-CA
IDH:
237115
EAN:
079340293267
Size Case: Dual cartridge
Quantity: 6.0/case
No documents found
Looking for a TDS or SDS in another language?
Technical Information
| Applications | Structural bonding |
| Cure type | Room temperature (ambient) cure |
| FEA (finite element analysis) | Finite strain, Viscoelastic |
| Key characteristics | Chemical resistant, Corrosion free, Environmental resistance, Flowable, Work life: extended work life |
| Number of components | 2 part |
| Physical form | Liquid |
| Recommended for use with | Electrometric material, Metal: aluminium, Metal: steel, Metal: steel - stainless steel, Polyamide (nylon), Polycarbonate, Wood |
| Mixed | |
| Color, Mixed | Black |
| Mix ratio, by volume, Mixed | 1 : 1 |
| Mix ratio, by weight, Mixed | 100 : 91 |
| Resin | |
| Color, Resin | Black |
| Viscosity, Brookfield, Resin @ 25.0 °C | 5200.0 - 7200.0 mPa·s (cP) |
| Hardener | |
| Color, Hardener | Light yellow |
| Viscosity, Brookfield, Hardener @ 25.0 °C | 12000.0 - 14000.0 mPa·s (cP) |
