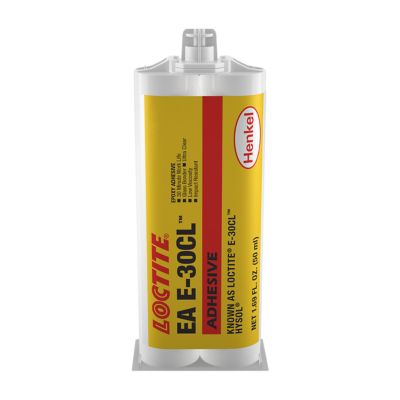

LOCTITE® EA E-30CL - Dual cartridge 10.0/case
Features and Benefits
Available sizes:
This 2-part, low viscosity, industrial-grade adhesive cures at room temperature with minor shrinkage to form an ultra-clear bondline.
LOCTITE® EA E-30CL is a low viscosity, industrial grade adhesive. Once mixed, the 2-part epoxy cures at room temperature with minimal shrinkage to form an ultra-clear adhesive bondline with excellent impact resistance. It is resistant to a wide range of chemicals and solvents, and has excellent dimensional stability over a wide temperature range. Perfect for bonding, small potting, staking and laminating applications where optical clarity and excellent structural, mechanical and electrical insulating properties are required. Bonds most materials including glass, optical fibers, ceramics, metals, and many rigid plastics.
- Excellent impact resistance
- Low viscosity
- Chemical and solvent resistant
- Electrically insulating
Documents and Downloads
Safety Data Sheets and RoHs
- Dual cartridge 10.0/case - IDH 237116
- Dual cartridge 10.0/case - IDH 237117
- Dual cartridge 6.0/case - IDH 237118
237116 en-CA
IDH:
237116
EAN:
079340293298
Size Case: Dual cartridge
Quantity: 10.0/case
237117 en-CA
IDH:
237117
EAN:
079340293304
Size Case: Dual cartridge
Quantity: 10.0/case
237118 en-CA
IDH:
237118
EAN:
079340293311
Size Case: Dual cartridge
Quantity: 6.0/case
Download SDS
LOCTITE EA E-30 CL RESIN IDH: 237118 EN/CA (1 of 4)
LOCTITE EA E-30CL HARDENER known as Hysol E-30CL Epoxy ADH Ultra IDH: 237118 EN/CA (2 of 4)
LOCTITE EA E-30CL known as Hysol E-30CL Epoxy ADH Ultra IDH: 237118 EN/CA (3 of 4)
LOCTITE EA E-30CL known as Hysol E-30CL Epoxy ADH UltraC IDH: 237118 EN/CA (4 of 4)
Download RoHs
IDH: 237118 EN/CA (1 of 4)
IDH: 237118 EN/CA (2 of 4)
IDH: 237118 EN/CA (3 of 4)
IDH: 237118 EN/CA (4 of 4)
No documents found
Looking for a TDS or SDS in another language?
Additional Documents
Technical Information
| Applications | Bonding fabric, Bonding plastic, Structural bonding |
| Color | Ultra clear |
| Cure type | Room temperature (ambient) cure |
| FEA (finite element analysis) | Finite strain, Viscoelastic |
| Key characteristics | Shrinkage: low shrinkage, Temperature: high temperature, Temperature: low temperature, Temperature: medium temperature, Viscosity: low viscosity |
| Mix ratio, by volume | 2 : 1 |
| Mix ratio, by weight | 100 : 46 |
| Number of components | 2 part |
| Recommended for use with | Ceramic, Glass, Metal, Plastic |
| Mixed | |
| Specific gravity, Mixed @ 25.0 °C | 1.07 |
| Resin | |
| Specific gravity, Resin @ 25.0 °C | 1.1 |
| Viscosity, Brookfield - RVT, Resin @ 25.0 °C Spindle 6, speed 20 rpm | 10500.0 mPa·s (cP) |
| Hardener | |
| Specific gravity, Hardener @ 25.0 °C | 1.0 |
| Viscosity, Brookfield - RVT, Hardener @ 25.0 °C Spindle 5, speed 20 rpm | 2250.0 mPa·s (cP) |
