LOCTITE® 5188 - Standard Cartridge 10.0/case
Features and Benefits
Available sizes:
This highly flexible, form-in-place, anaerobic-curing gasketing sealant is designed for use on rigid metal flanged connections, particularly where there’s minor oil contamination of the flange surfaces. Works on aluminum substrates.
If you need a gasketing product but your flange surfaces have minor oil contamination, choose LOCTITE® 5188. This highly flexible, 1-part, anaerobic form-in-place sealant is designed for use on rigid metal flanged connections like gearboxes and engine casings, forms an instant seal, has excellent chemical resistance, and can be dispensed by hand or robotically with the appropriate LOCTITE® systems. Perfect for use on aluminum substrates where very good adhesion is achieved.
- Seals rigid metal flanges
- Excellent chemical resistance
- Excellent in demanding applications
- Highly flexible even after high temperature exposure
- Ideal for aluminum flanges
Documents and Downloads
Safety Data Sheets and RoHs
- Standard Cartridge 10.0/case - IDH 1241991
- Tube 10.0/case - IDH 1253203

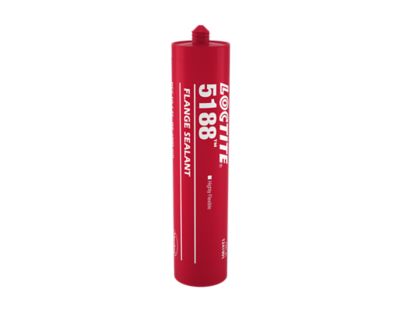

LOCTITE® 5188, 300 ml Standard Cartridge 1241991 en-CA
IDH:
1241991
EAN:
079340436794
Size Case: Standard Cartridge
Quantity: 10.0/case
LOCTITE® 5188, 50 ml Tube 1253203 en-CA
IDH:
1253203
EAN:
079340437098
Size Case: Tube
Quantity: 10.0/case
No documents found
Looking for a TDS or SDS in another language?
Technical Information
| Applications | Gasketing |
| Chemical basis / base | Dimethacrylate ester |
| Color | Red |
| Fixture time, Steel | 25.0 min. |
| Gap fill, Unprimed | 0.25 mm |
| Key characteristics | For machined, rigid flanges |
| Number of components | 1 part |
| Operating temperature | -55.0 - 150.0 °C (-65.0 - 300.0 °F ) |
| Recommended for use with | Metal: aluminium, Metal: steel |
| Viscosity, 20 RPM | 21000.0 mPa·s (cP) |
LOCTITE® 5188
This highly flexible, form-in-place, anaerobic-curing gasketing sealant is designed for use on rigid metal flanged connections, particularly where there’s minor oil contamination of the flange surfaces. Works on aluminum substrates.
