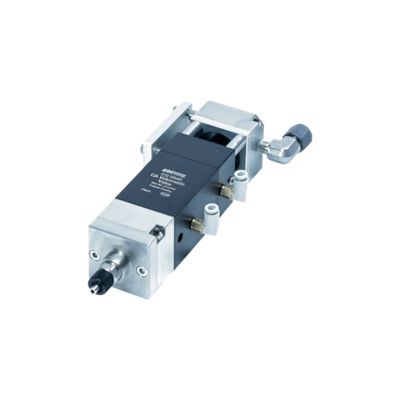

LOCTITE® VA40 Cyanoacrylate Volumetric Valve
Features and Benefits
This high-precision, positive displacement, volumetric metering valve is for dispensing cyanoacrylates (instant adhesive). For accurate, reliable, repeatable drop applications.
The LOCTITE® VA40 CA Volumetric Valve is designed to dispense drops of cyanoacrylate (1.5 to 6 microlitres, at a maximum cycle rate of 120/minute). It includes a check valve design, which improves the speed and reliability of priming. An innovative displacement rod and sealing system mean you can rely on a long dispensing life before you need to think about rebuilding.
Read More
Technical Information
| Air input pressure | 60.0 - 100.0 psi |
| Applications | Dispensing adhesives |
| Dispense patterns | Dots, Drops |
| Fluid pressure, Recommended | 30.0 - 70.0 psi |
| Key characteristics | Stroke adjustment |
| Operating type | High precision, Positive displacement, Volumetric |
| Used to dispense | Light cure acrylics |
| Used to dispense, Recommended | Cyanoacrylates |
| Viscosity | 1.0 - 10000.0 mPa·s |
LOCTITE® VA40 Cyanoacrylate Volumetric Valve
This high-precision, positive displacement, volumetric metering valve is for dispensing cyanoacrylates (instant adhesive). For accurate, reliable, repeatable drop applications.
