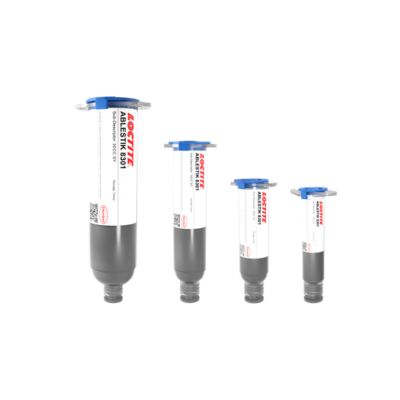

LOCTITE® ABLESTIK 8301
Known as ABLEBOND 8301 (39G)
Features and Benefits
LOCTITE ABLESTIK 8301, Epoxy hybrid, Die Attach, Electrically Conductive Adhesive
LOCTITE® ABLESTIK 8301 electrically conductive die attach adhesive is designed for high reliability package applications.
Read More
Documents and Downloads
Looking for a TDS or SDS in another language?
Technical Information
| Applications | Die attach |
| Cure type | Heat cure |
| Extractable ionic content, Chloride (CI-) | 9.0 ppm |
| Extractable ionic content, Potassium (K+) | 5.0 ppm |
| Extractable ionic content, Sodium (Na+) | 9.0 ppm |
| Hot die shear strength | 15.0 kg-f |
| Number of components | 1 part |
| Physical form | Paste |
| RT die shear strength | 2.0 kg-f |
| Recommended for use with | LeadFrame: gold, LeadFrame: silver |
| Tensile modulus, @ 250.0 °C | 60.0 N/mm² (8700.0 psi ) |
