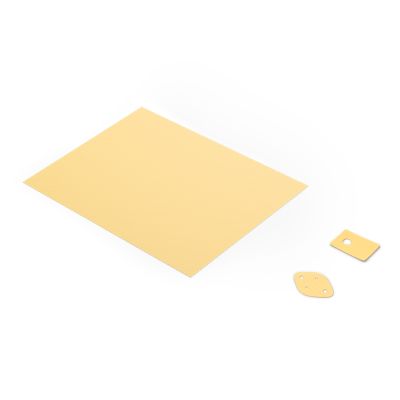

BERGQUIST® SIL PAD® TSP PP1200
Conhecido como Poly-Pad™ 1000
Características e Benefícios
BERGQUIST SIL PAD TSP PP1200, Polyester-Based, Thermally Conductive Insulation Material
BERGQUIST® SIL PAD® TSP PP1200 is a fiberglass-based insulator coated with a filled polyester resin. The material offers superior thermal resistance for high performance applications.Polyester-based, thermally conductive insulators from Henkel provide a complete family of materials for silicone-sensitive applications. SIL PADS are ideally suited for applications requiring conformal coatings or applications where silicone contamination is a concern (telecom & certain aerospace applications). SIL PADS are constructed with ceramic-filled polyester resins coating either side of a fiberglass carrier or a film carrier. The SIL PAD family offers a complete range of performance characteristics to match individual applications.Options and ConfigurationsStandard thickness - 0.009"Custom made configurations available upon request
Ler mais
Documentos e Downloads
Procurando por um TDS ou MSDS / FISPQ em outro idioma?
Documentação Adicional
Informação Técnica
| Classificação da chama | V-0 |
| Condutividade térmica | 1.2 W/mK |
| Constante dielétrica, @ 1kHz | 4.5 |
| Dureza shore, ASTM D2240 Shore A | 90.0 |
| Espessura do filme transportador | 0.025 - 0.05 mm |
| Espessura padrão | 0.229 mm |
| Impedância térmica, ASTM D5470 @ 50 psi | 0.82 °C-in²/W |
| Resistividade volumétrica | 1×10 Ohm m |
| Temperatura de mudança de fase | 55.0 °C |
| Temperatura de operação | -20.0 - 150.0 °C |
| Tensão de ruptura dielétrica | 2500.0 Vac |
